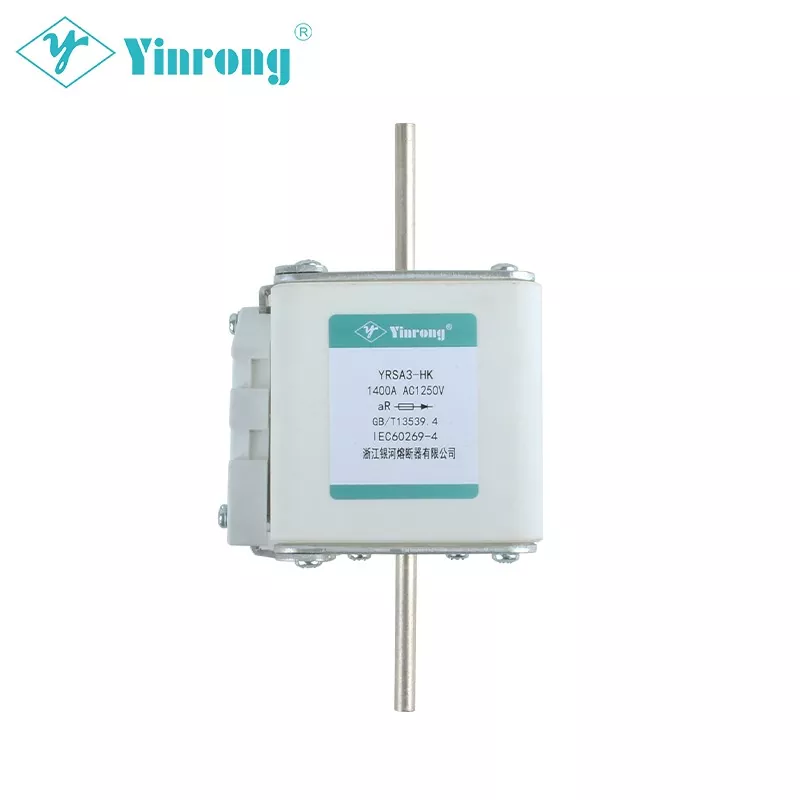

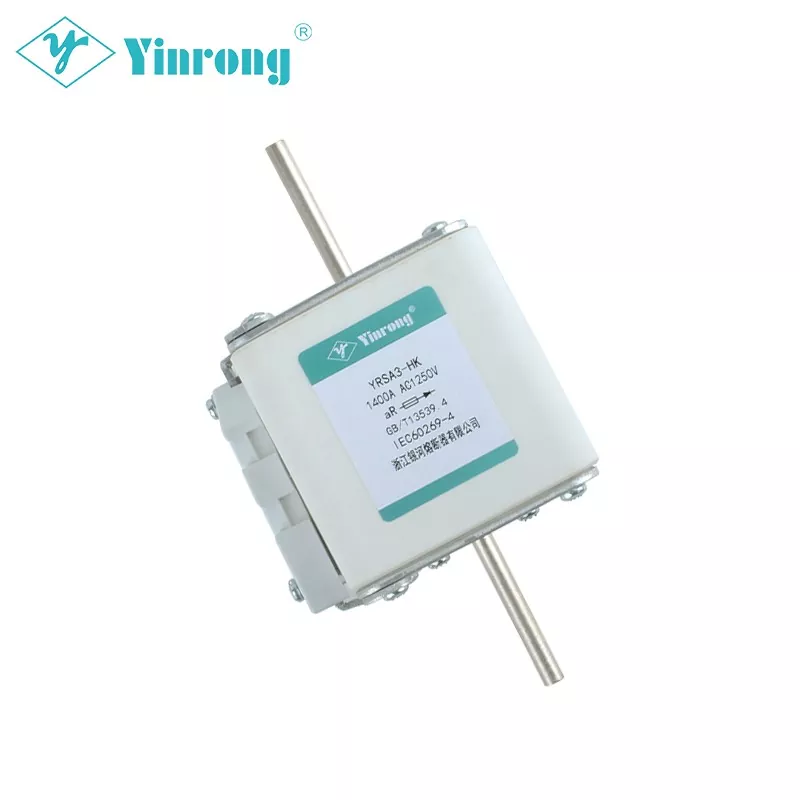

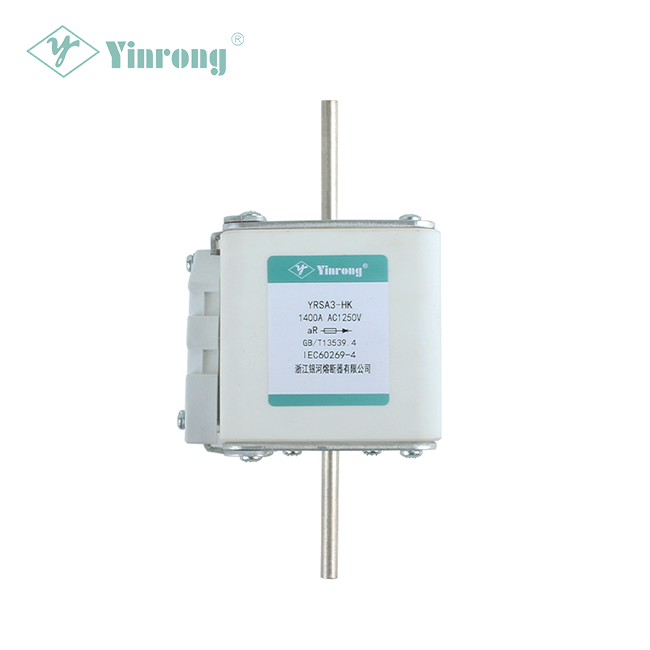

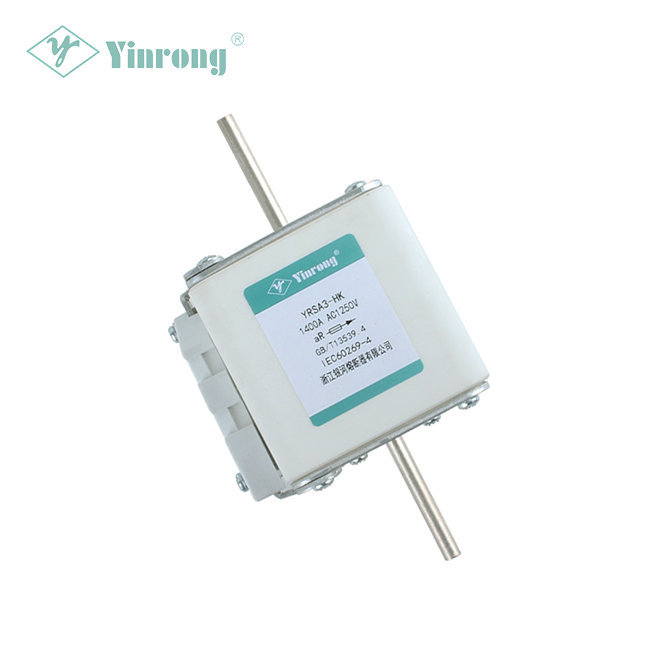

YRSA01/1/2/3-H(K) 1250V 40-2000A yuqori tezlikda ishlaydigan sug'urta

Galaxy Fuse Xitoyning etakchi YRSA01/1/2/3-H(K) 1250V 40-2000A yuqori tezlikli sug'urta ishlab chiqaruvchilari. Xitoyning yuqori tezlikdagi yarimo'tkazgichli sug'urta yetkazib beruvchisi Galaxy Fuse (Yinrong) kompaniyasining YRSA(x)-HK Series gR yuqori tezlikdagi sigortalari yarimo'tkazgich qurilmalarini himoya qilish uchun maxsus ishlab chiqilgan.

So'rov yuborish

Mahsulot tavsifi

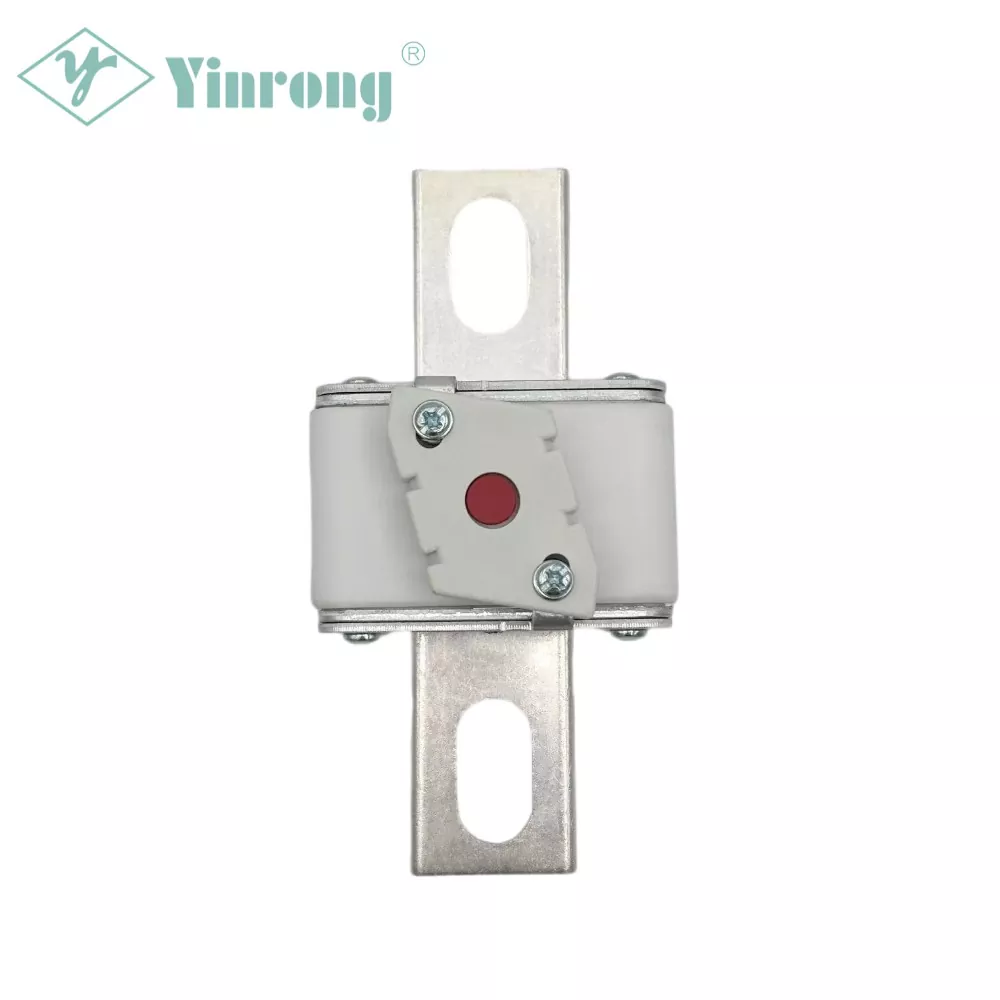

YRSA01/1/2/3-H(K) 1250V 40-2000A High-Speed Fuses are designed for both overload and short-circuit protection. YRSA(x)-HK Series gR high speed fuses provide a wide amperage rating of 40-2000A under the rated voltage of 1250V (IEC/UL), which can typically fit most semiconductor devices. This YRSA(x)-HK Series gR high speed fuse conforms to the national standard GB13539.4 and the international electrical committee standard IEC60269-4.Many square body fuses are equipped with a trip-indicator. This trip indicator can operate a field-mountable micro-switch which is easily mounted directly onto the fuse. Galaxy Fuse (Yinrong) also affords various high speed fuses to meet customers' requirements.

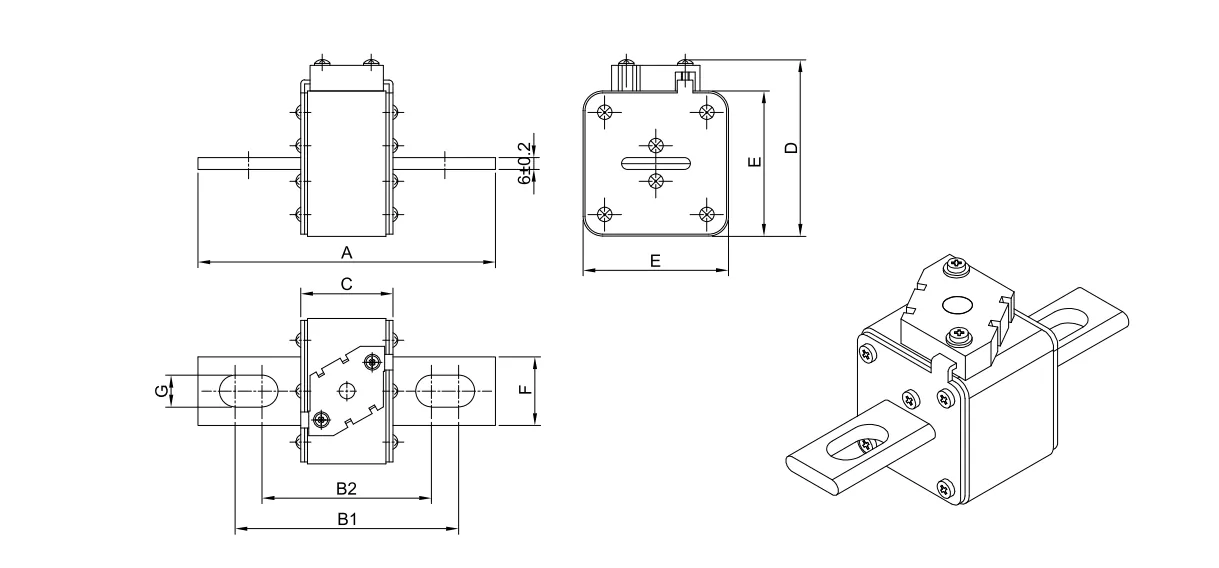

Hajmi (mm)

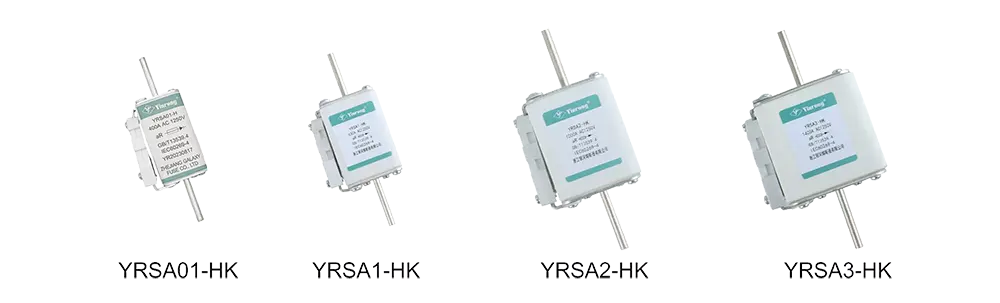

P/N	A±2,5	A(115）±2,5	B1±2,5	B1（115）±2,5	B2±2,5	B2（115）±2,5	C±2,5	D±2,5	E±2	F±1	G±0,5
YRSA01-H	110	148	85	123	72	110	50	59	45	20	10
YRSA1-H	136	157	104	126	78	100	50	69	53	25	14
YRSA2-H	135	159	105	125	78	99	50	77	61	25	14
YRSA3-H	135	155	106	125	77	97	51	92	75	36	16

Tasdiqlash va standartlar

· GB/T13539.4

· IEC60269-4

·UL248-13

Operatsion klassi

·gR

·aR

Xususiyatlari va afzalliklari

· 1250VAC elektr tizimi mavjud

·40-2000A reytinglari mavjud

· Juda yuqori uzilishlar reytingi

· Global qabul qilish uchun IEC standartlariga mos keladi

· Yuqori velosiped qobiliyati

· Yuqori oqim chegarasi

· Vizual va ixtiyoriy mikro o'chirgichning yonib ketgan ko'rsatkichi

Ilovalar

· Quvvatni o'zgartirish qurilmalari (UOS, inverter, rektifikatorlar, drayvlar)

· DC tizimlari （DC umumiy avtobus， DC qarshi tormozlash）

· Batareyani himoya qilish dasturi

· Elektr transport vositalarini zaryadlash stansiyalari

· Isitgichlar va quvvat manbalari

· Boshqa yarimo'tkazgichlar

Ishlab chiqaruvchi mamlakat; ta'minotchi mamlakat

· Xitoy Xalq Respublikasi

An'anaviy eritish va eritmaslik

Nominal oqim (A）	An'anaviy vaqt （h）	An'anaviy oqim
		"gR"
		Inf	lf
ln≤63	1	1,13 mln	1,6 mln
63＜In≤160	2
160＜ln≤400	3
400＜ln	4
Eslatma: ln - sug'urtaning nominal oqimi; lnf - an'anaviy eritilmaydigan oqim; agar an'anaviy termoyadroviy oqim bo'lsa.
